[Notes] PPO, GRPO, and GSPO

Introduction

This blog post provides an overview of the core concepts of the Proximal Policy Optimization (PPO) algorithm and its two variants — the Group Relative Policy Optimization (GRPO) and Group Sequence Policy Optimization (GSPO) algorithms. This post assumes basic knowledge of reinforcement learning fundamentals, meaning it does not explain terms such as policy, on-policy/off-policy learning, and state value function in detail.

For a deep-dive into reinforcement learning fundamentals, I recommend David Silver’s classic 2015 course. I don’t know if there’s a good modern alternative. Kindly let me know in the comment section.

Proximal Policy Optimization (PPO)

Proximal Policy Optimization (PPO) is an on-policy reinforcement learning algorithm introduced by Schulman et al. (2017) [1]. It was the dominant method for the RLHF (Reinforcement Learning from Human Feedback) stage of LLM alignment (e.g., InstructGPT, ChatGPT) prior to the widespread adoption of GRPO-based methods, popularized by DeepSeek-R1.

PPO is a policy gradient method. The goal is to maximize expected reward while preventing the updated policy $\pi_\theta$ from straying too far from the old policy $\pi_{\theta_\text{old}}$ used to collect data. It achieves this through a clipped surrogate objective:

$$ \mathcal{J}^{\text{CLIP}}(\theta) = \mathbb{E}_t \left[ \min\!\left( r_t(\theta)\, \hat{A}_t,\; \text{clip}(r_t(\theta),\, 1-\varepsilon,\, 1+\varepsilon)\, \hat{A}_t \right) \right] $$

where:

• $r_t(\theta) = \dfrac{\pi_\theta(a_t \mid s_t)}{\pi_{\theta_\text{old}}(a_t \mid s_t)}$ is the probability ratio between the new and old policy.
• $\hat{A}_t$ is the estimated advantage at step $t$ (how much better the action was than the baseline).
• $\varepsilon$ (typically 0.1–0.2) controls how large a policy update is allowed in a single step.

First Term: $r_t(\theta)\,\hat{A}_t$

The first term $r_t(\theta)\,\hat{A}_t$ is a direct application of importance sampling — a technique for estimating an expectation under one distribution (the new policy $\pi_\theta$) using samples drawn from another distribution (the old policy $\pi_{\theta_\text{old}}$ ).

Recall that we want to compute $\mathbb{E}_{\pi_\theta}[A_t]$, the expected advantage under the current policy. But we only have rollouts sampled from $\pi_{\theta_\text{old}}$. Importance sampling lets us correct for this mismatch:

$$ \mathbb{E}_{a_t \sim \pi_\theta}[\hat{A}_t] = \mathbb{E}_{a_t \sim \pi_{\theta_\text{old}}}\!\left[\frac{\pi_\theta(a_t \mid s_t)}{\pi_{\theta_\text{old}}(a_t \mid s_t)},\hat{A}_t\right] = \mathbb{E}_{a_t \sim \pi_{\theta_\text{old}}}\!\left[r_t(\theta)\,\hat{A}_t\right] $$

With this knowledge, we now know that $r_t(\theta),\hat{A}_t$ is the unclipped surrogate objective — the advantage weighted by the importance sampling ratio, i.e., how much more (or less) likely the current policy $\pi_\theta$ is to choose action $a_t$ relative to the old policy $\pi_{\theta_\text{old}}$:

• $r_t > 1$: the current policy assigns higher probability to this action than the old policy did.
• $r_t < 1$: the current policy has moved away from this action.
• $\hat{A}_t > 0$: the action was better than the baseline → increase its probability.
• $\hat{A}_t < 0$: the action was worse than the baseline → decrease its probability.

Intuition: when $\hat{A}_t > 0$, we want to increase the chance of the policy $\pi_\theta$ choosing this action, which usually leads to $r_t > 1$.

On its own, this term is unbounded — large $r_t$ can cause catastrophically large updates, which is why the clip is needed.

Clipping Behavior

The unclipped term exhibits high variance in practice when the two policies diverge significantly. This is why PPO clips $r_t(\theta)$. The clipping in the second term acts as a safeguard: it caps the importance sampling correction once it strays outside $[1-\varepsilon,\, 1+\varepsilon]$, preventing large, destabilizing updates.

The min + clip construction is pessimistic: it only constrains updates that make the objective look better. Gradient flows unconstrained precisely when the policy is moving in the wrong direction:

In both unconstrained cases the policy has strayed in the wrong direction, so an aggressive corrective update is permitted. Conversely, once the policy has already moved far enough in the right direction ($r_t < 1-\varepsilon$, $\hat{A}_t < 0$ or $r_t > 1+\varepsilon$, $\hat{A}_t > 0$), the gradient is zeroed out to prevent over-correction.

Additional Details

Generalized Advantage Estimation

PPO typically uses Generalized Advantage Estimation (GAE) to compute $\hat{A}_t$:

$$ \hat{A}_t = \sum_{l=0}^{\infty} (\gamma \lambda)^l \delta_{t+l}, \quad \delta_t = R_t + \gamma V(s_{t+1}) - V(s_t) $$

$\lambda \in [0,1]$ trades off bias vs. variance. $\delta_t$ represents the TD error, where $R_t$ is the reward at step $t$ (distinct from the probability ratio $r_t(\theta)$ used above). $V(s_t)$ is the state value function (a.k.a. the critic). This requires the value function/model to produce token-level baseline estimates throughout the generation rollout.

Higher $\lambda$ gives us higher variance, as the estimated advantage relies more on actual future rewards (and less on the value function bootstrap) by weighting further-horizon terms in the sum more heavily.

A critic/value model must be trained to produce accurate $V(s_t)$ estimates, because noisy value estimates propagate directly into noisy advantage estimates and therefore noisy policy gradients.

KL Divergence Penalty

When being applied in the RLHF (Reinforcement Learning from Human Feedback) context, an additional per-token KL divergence penalty $-\beta \log \frac{\pi_\theta(a_t|s_t)}{\pi_\text{ref}(a_t|s_t)}$ is added to the reward to prevent the policy from collapsing into reward-hacking behavior far from the original SFT distribution.

Clipping limits the size of the update (the speed of the new policy model $\pi_\theta$ moves away from the old policy model $\pi_{\theta_\text{old}}$), while the KL penalty constantly pulls the new policy model $\pi_\theta$ towards the reference policy model $\pi_\text{ref}$, which is usually the initial SFT (supervised fine-tuning) model. The table below provides a quick comparison between the two.

Group Relative Policy Optimization (GRPO)

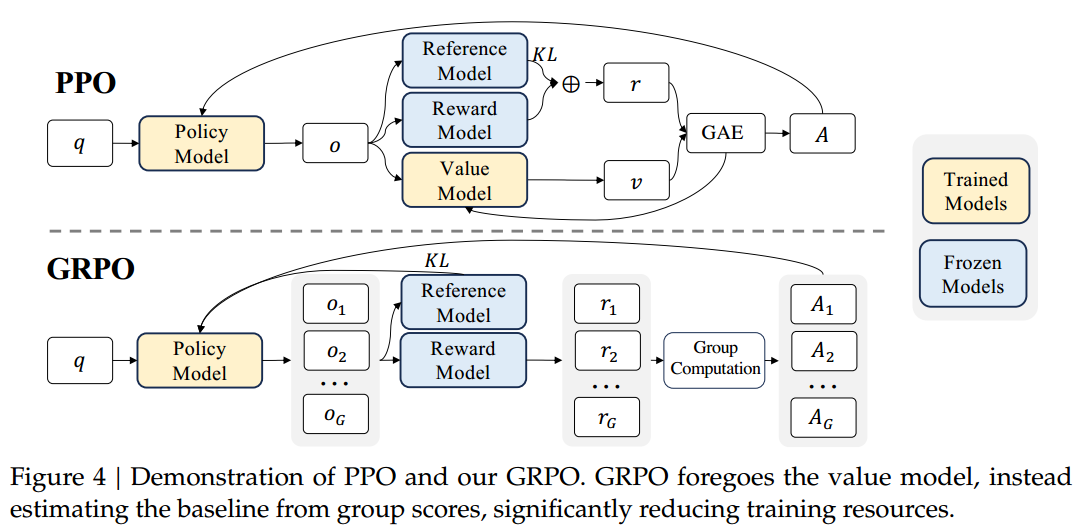

Group Relative Policy Optimization (GRPO) (Shao et al., 2024) is a variant of PPO that eliminates the critic/value model entirely. Instead of learning a value function $V(s)$ to estimate per-token/per-action advantages, GRPO estimates advantages from the relative ranking of rewards within a group of sampled outputs for the same prompt. (We’ll use “token” instead of “action” in this section as this algorithm is mainly used in LLM training. However, this algorithm can also be applied to general RL scenarios.)

For each prompt $q$, sample a group of $G$ complete outputs ${o_1, o_2, \ldots, o_G}$ from the old policy $\pi_{\theta_\text{old}}$. Score each output with a reward model (or rule-based verifier) to get rewards ${R_1, R_2, \ldots, R_G}$. The advantage of each output is simply its z-score within the group:

$$ \hat{A}_i = \frac{R_i - \text{mean}({R_1, \ldots, R_G})}{\text{std}({R_1, \ldots, R_G})} $$

This is a sequence-level advantage: every token in the same output $o_i$ receives the same advantage $\hat{A}_i$. There is no per-token credit assignment — just “this entire response was better/worse than its peers.”

GRPO uses the same clipped surrogate structure as PPO, but applied at the token level within each output, with a KL divergence regularizer replacing the separate KL penalty reward in PPO:

$$ \mathcal{J}_\text{GRPO}(\theta) = \mathbb{E}_{q \sim \mathcal{D},, {o_i} \sim \pi_{\theta_\text{old}}} \left[ \frac{1}{G} \sum_{i=1}^{G} \frac{1}{|o_i|} \sum_{t=1}^{|o_i|} \left( \min\!\left( r_{i,t}(\theta)\,\hat{A}_i,\; \text{clip}(r_{i,t}(\theta), 1-\varepsilon, 1+\varepsilon)\,\hat{A}_i \right) - \beta\, \mathbb{D}_\text{KL}\!\left[\pi_\theta \| \pi_\text{ref}\right] \right) \right] $$

where $r_{i,t}(\theta) = \frac{\pi_\theta(o_{i,t} \mid q, o_{i,<t})}{\pi_{\theta_\text{old}}(o_{i,t} \mid q, o_{i,<t})}$ is the per-token probability ratio (same as PPO).

Why It Works: Intuition

The z-score normalization creates an implicit within-group competition:

• Outputs with above-average rewards get $\hat{A}_i > 0$ → their token probabilities are increased.
• Outputs with below-average rewards get $\hat{A}_i < 0$ → their token probabilities are decreased.
• An output that is average for the group ($\hat{A}_i \approx 0$) is largely ignored.

This is a form of REINFORCE with a baseline, where the baseline is the empirical group mean. The group standard deviation acts as an adaptive scaling factor — when the reward variance within a group is low (the model produces consistently-scored outputs), advantages are amplified; when variance is high, advantages are moderated.

Iterative Training Loop

The DeepSeekMath paper describes an iterative RL process with GRPO, which is a two-loop algorithm where the reference model is periodically refreshed (not permanently frozen):

for each outer iteration i = 1, …, I:
    πref ← πθ                          # refresh reference model
    for each inner step m = 1, …, M:
        πθ_old ← πθ                    # snapshot for sampling
        Sample G outputs per prompt from πθ_old
        Compute rewards and group-relative advantages
        for each gradient update μ = 1, …, K:
            Update πθ via GRPO objective (clipped surrogate + KL to πref)

This gives three model states moving at different speeds:

The reference model is not permanently frozen to the SFT checkpoint — it is set to the current policy at the start of each outer iteration, then held fixed for $M$ inner steps. This means the KL penalty prevents drift within an outer iteration, but allows the reference to gradually shift with the policy across iterations. The overall training trajectory is thus a series of “controlled leaps” rather than a single long leash back to the SFT model.

Additional Details

Updated KL Divergence Penalty

The KL term in the objective function is estimated token-wise:

$$ \mathbb{D}_\text{KL}\!\left[\pi_\theta \| \pi_\text{ref}\right] = \frac{\pi_\theta(o_{i,t} \mid q, o_{i,<t})}{\pi_\text{ref}(o_{i,t} \mid q, o_{i,<t})} - \log \frac{\pi_\theta(o_{i,t} \mid q, o_{i,<t})}{\pi_\text{ref}(o_{i,t} \mid q, o_{i,<t})} - 1 $$

This expression serves as a token-level proxy for the KL penalty on $\pi_\theta$ relative to $\pi_\text{ref}$. The expression $\frac{p}{q} - \log \frac{p}{q} - 1$ is non-negative and equals zero when $p = q$, making it a suitable regularizer.

Model Requirements

By removing the value model, GRPO roughly halves the training-time GPU memory compared to PPO. GRPO-Zero (used in DeepSeek-R1-Zero [3]) goes further by replacing the learned reward model with a rule-based verifier — only feasible for tasks with objectively checkable answers (e.g., math, code).

Group Sequence Policy Optimization (GSPO)

Group Sequence Policy Optimization (GSPO) [4] is a refinement of GRPO that fixes a fundamental mismatch in how GRPO applies importance sampling. The core change: replacing token-level importance weights with a single sequence-level importance ratio, eliminating accumulated variance that destabilizes training — especially in Mixture-of-Experts (MoE) architectures.

Motivation: What’s Wrong with GRPO’s Token-Level Weights?

Recall that the GRPO’s objective uses a per-token probability ratio $r_{i,t}(\theta) = \frac{\pi_\theta(o_{i,t} \mid q, o_{i,<t})}{\pi_{\theta_\text{old}}(o_{i,t} \mid q, o_{i,<t})}$ inside the clipped surrogate, even though every token in the same output shares the same sequence-level advantage $\hat{A}_i$.

This creates three problems:

1. Misapplied importance sampling: As the reward and advantages are sequence-level, performing token-based importance sampling creates a misalignment between the policy and the reward. Note that even if we remove the clipping mechanism, the importance sampling in GRPO is not equivalent to sequence-level sampling, as it uses summation instead of product on the weighted advantages.
2. Variance accumulation. Token-level ratios vary independently across positions. Over long sequences, these fluctuations compound, injecting high-variance noise into the training gradient. The clipping mechanism (designed to stabilize updates) actually exacerbates this because different tokens within the same response get clipped at different positions, creating inconsistent gradient signals.
3. MoE instability. In MoE models, ~10% of expert activations change after each gradient update. This causes individual token likelihoods to fluctuate drastically between $\pi_\theta$ and $\pi_{\theta_\text{old}}$, even when the overall sequence likelihood is stable. GRPO’s token-level ratios amplify this volatility, often leading to training collapse without a workaround called Routing Replay (caching and replaying expert assignments from $\pi_{\theta_\text{old}}$ — costly in memory and communication).

The GSPO Fix: Sequence-Level Everything

GSPO’s objective mirrors GRPO’s clipped surrogate structure but operates at the sequence level:

$$ \mathcal{J}_\text{GSPO}(\theta) = \mathbb{E}\!\left[ \frac{1}{G} \sum_{i=1}^{G} \min\!\left( s_i(\theta),\hat{A}_i,\; \text{clip}(s_i(\theta),\, 1-\varepsilon,\, 1+\varepsilon),\hat{A}_i \right) \right] $$

The advantage $\hat{A}_i$ is the same group z-score as GRPO:

$$ \hat{A}_i = \frac{R_i - \text{mean}({R_1, \ldots, R_G})}{\text{std}({R_1, \ldots, R_G})} $$

The key difference is the sequence-level importance ratio $s_i(\theta)$, defined as the geometric mean of token-level ratios (equivalently, the length-normalized sequence likelihood ratio):

$$ s_i(\theta) = \left( \frac{\pi_\theta(y_i \mid x)}{\pi_{\theta_\text{old}}(y_i \mid x)} \right)^{1/|y_i|} = \exp\!\left( \frac{1}{|y_i|} \sum_{t=1}^{|y_i|} \log \frac{\pi_\theta(y_{i,t} \mid x, y_{i,<t})}{\pi_{\theta_\text{old}}(y_{i,t} \mid x, y_{i,<t})} \right) $$

The $1/|y_i|$ exponent serves two purposes:

• Variance reduction: averaging log-ratios across tokens smooths out per-token noise.
• Length normalization: keeps the ratio in a consistent numerical range regardless of sequence length.

Additional Details

KL Divergence Penalty

GRPO’s objective includes an explicit KL penalty term anchored to a reference policy $\pi_\text{ref}$:

$$\mathcal{J}_\text{GRPO}(\theta) = \ldots \left( \min(\ldots) - \beta\, \mathbb{D}_\text{KL}[\pi_\theta | \pi_\text{ref}] \right)$$

GSPO drops this term entirely in their proposed objective function. Its objective (shown above) contains no β·KL component — policy constraint comes solely from sequence-level clipping. It’s unclear whether the GSPO paper is using a PPO-style KL divergence penalty on rewards or simply doesn’t use a KL divergence penalty at all.

GSPO-token: Finer-Grained Credit Assignment

For settings requiring per-token advantages (e.g., multi-turn RL with step-level rewards), GSPO offers a token-level variant:

$$ \mathcal{J}_\text{GSPO-token}(\theta) = \mathbb{E}\!\left[ \frac{1}{G} \sum_{i=1}^{G} \frac{1}{|y_i|} \sum_{t=1}^{|y_i|} \min\!\left( s_{i,t}(\theta)\,\hat{A}_{i,t},\; \text{clip}(s_{i,t}(\theta),\, 1-\varepsilon,\, 1+\varepsilon)\,\hat{A}_{i,t} \right) \right] $$

where the token-level ratio is constructed via a stop-gradient trick:

$$ s_{i,t}(\theta) = \text{sg}[s_i(\theta)] \cdot \frac{\pi_\theta(y_{i,t} \mid x, y_{i,<t})}{\text{sg}[\pi_\theta(y_{i,t} \mid x, y_{i,<t})]} $$

Since $s_{i,t}(\theta)$ is numerically equal to $s_i(\theta)$, the clipping decision is identical for every token in the sequence. The per-token flexibility lies in the gradient: $sg[s_i(\theta)]$ freezes the sequence-level ratio as a scalar, so gradient flows only through the single-token numerator $\pi_\theta(y_{i,t})$, giving each token a gradient of $s_i(\theta) \cdot \hat{A}_{i,t} \cdot \nabla_\theta \log \pi_\theta(y_{i,t})$. When all token advantages equal the sequence advantage ($\hat{A}_{i,t} = \hat{A}_i$), GSPO-token reduces exactly to standard GSPO.

Gradient Comparison: GSPO vs GRPO

The difference becomes clearest when examining gradients.

GSPO gradient:

$$ \nabla_\theta \mathcal{J}_\text{GSPO}(\theta) = \mathbb{E}\!\left[ \frac{1}{G} \sum_{i} \underbrace{\left(\frac{\pi_\theta(y_i|x)}{\pi_{\theta_\text{old}}(y_i|x)}\right)^{1/|y_i|}}_{\text{single weight per sequence}} \hat{A}_i \cdot \frac{1}{|y_i|} \sum_t \nabla_\theta \log \pi_\theta(y_{i,t} \mid x, y_{i,<t}) \right] $$

All tokens within a response are weighted equally by the same sequence-level factor.

GRPO gradient:

$$ \nabla_\theta \mathcal{J}_\text{GRPO}(\theta) = \mathbb{E}\!\left[ \frac{1}{G} \sum_{i} \hat{A}_i \cdot \frac{1}{|y_i|} \sum_t \underbrace{\frac{\pi_\theta(y_{i,t}|x,y_{i,<t})}{\pi_{\theta_\text{old}}(y_{i,t}|x,y_{i,<t})}}_{\text{different weight per token}} \nabla_\theta \log \pi_\theta(y_{i,t} \mid x, y_{i,<t}) \right] $$

Each token’s gradient is scaled by its own importance ratio. These unequal weights are the source of GRPO’s instability — they amplify some token gradients and suppress others in ways that have no principled connection to the sequence-level reward signal.

Reference

1. Schulman, J., Wolski, F., Dhariwal, P., Radford, A., & Klimov, O. “Proximal Policy Optimization Algorithms.” arXiv preprint arXiv:1707.06347, 2017.
2. Shao, Z., Wang, P., Zhu, Q., Xu, R., Song, J., Bi, X., Zhang, H., Zhang, M., Li, Y.K., Wu, Y., & Guo, D. “DeepSeekMath: Pushing the Limits of Mathematical Reasoning in Open Language Models.” arXiv preprint arXiv:2402.03300, 2024.
3. DeepSeek-AI, Guo, D., Yang, D., Zhang, H., et al. “DeepSeek-R1: Incentivizing Reasoning Capability in LLMs via Reinforcement Learning.” arXiv preprint arXiv:2501.12948, 2025.
4. Zheng, C., Liu, S., Li, M., Chen, X., Yu, B., Gao, C., Dang, K., Liu, Y., Men, R., Yang, A., Zhou, J., & Lin, J. “Group Sequence Policy Optimization.” arXiv preprint arXiv:2507.18071, 2025.

AI Use Disclosure

• I relied much more heavily on AI for this post than I usually do when writing other posts for this site.
• I used AI to analyze the papers, extract key formulas and format them in LaTeX, and draft explanations for key concepts.
• I organized, edited, and added to the AI-generated content to correct inaccuracies and align it more closely with my mental model of the key concepts in these papers.
• I used AI iteratively to proofread my draft and then revised it until I felt the post was ready to publish. While AI saved me a significant amount of time, this post reflects my own understanding of the topics.
